Taking orders for Q1 2027 delivery

Stainless process tanks, built to your drawing and tested before they leave Rawang.

Tangkira fabricates jacketed vessels, mixing tanks, reactors and pipe skids in SS304, SS316L and duplex. From 0.5 to 60 m³, designed to ASME VIII Div. 1, hydro-tested and passivated in our own shop, and handed over with a full QA dossier your auditor can read in one sitting.

  • Food & dairy
  • Palm oil & oleochemicals
  • Pharma & nutraceutical
  • Water treatment
  • Specialty chemicals
Request a quoteTalk to an engineer

An engineer replies within one working day. Budget quotes in 5 working days.

General arrangement drawing of a 10 cubic metre jacketed mixing vessel, 2,400 mm diameter and 6,850 mm overall height6,850overall3,600T/TØ 2,400 ID12345

Title

10 m³ jacketed mixing vessel, SS316L

Client: Kelip Dairies (demo)

Drawing

TPS-2231-GA

Revision

C, for build

Design code

ASME VIII-1

Scale

1:40, mm

  1. 1Agitator drive, 7.5 kW, VFD
  2. 2Manway DN500, quick-release
  3. 3Dimple jacket, 6 barg steam
  4. 4CIP spray ball, 360°
  5. 5Bottom outlet DN80, tank valve
General arrangement from a recent dairy project. Every order starts with a drawing like this, signed off by you before we cut steel.
vessels delivered since 1994
1,240+
shipped on or before the agreed date in 2025
96.8%
covered shop with 2 × 20 t cranes
4,200 m²
days without a lost-time injury
1,100

Plants in Malaysia, Singapore and Indonesia run on Tangkira vessels, including

  • Sawira Oleo
  • kelip dairies
  • MEKARbio
  • Hulu Water
  • SERI TAPIS
  • Nusacoat

One shop, six industries that each read a tank differently.

A dairy cares about dead legs. A refinery cares about jacket pressure. A pharma plant cares about the paperwork. We keep one engineer lead per industry, so the person reading your spec has built the same kind of vessel many times before.

  • Food & dairy

    Mixing, buffer and storage tanks with sanitary welds you can run a fingernail over. Built for CIP from day one.

    Typical spec: Internal finish Ra ≤ 0.8 µm, crevice-free nozzles, 3-A style drainage

  • Palm oil & oleochemicals

    Jacketed reactors, bleachers and fatty-acid storage that live with heat, pressure and a 24/7 refinery schedule.

    Typical spec: Up to 10 barg / FV, 250 °C, half-pipe or dimple jackets

  • Pharma & nutraceutical

    Compounding vessels and purified-water skids finished for GMP audits, with the paperwork trail to match.

    Typical spec: Electropolished Ra ≤ 0.4 µm, orbital welds, boroscope records

  • Water & wastewater

    Dosing tanks, filter housings and pipe skids for treatment plants that cannot afford a leak or a rust stain.

    Typical spec: SS316L or duplex 2205, 0.5 to 60 m³, skid-mounted

  • Specialty chemicals

    Reaction and blending vessels for coatings, adhesives and cleaning chemicals, with agitators sized to your viscosity.

    Typical spec: Agitators 0.75 to 30 kW, anchor, pitched-blade or high-shear

  • Semicon & electronics

    Ultra-pure chemical and DI water tanks, and the stainless frames and trays that go around fab tools.

    Typical spec: Clean-room bagging, helium leak test to 1×10⁻⁹ mbar·l/s

What we build, with the numbers your engineer will ask for.

These are the working limits of our shop today, not a brochure wish list. If your spec sits outside them, we will say so in the first call and tell you who can do it.

  • Storage & buffer tanks

    Capacity
    0.5 to 60 m³
    Pressure
    Atmospheric to FV
    Material
    SS304, SS316L
    Finish
    2B, #4, Ra ≤ 0.8 µm
    Lead time
    8 to 12 wks

  • Jacketed mixing vessels

    Capacity
    0.5 to 30 m³
    Pressure
    FV to 6 barg, jacket 6 barg
    Material
    SS316L
    Finish
    Ra ≤ 0.8 µm, electropolish option
    Lead time
    12 to 16 wks

  • Reactors & pressure vessels

    Capacity
    1 to 40 m³
    Pressure
    FV to 10 barg, 250 °C
    Material
    SS316L, duplex 2205
    Finish
    Pickled & passivated
    Lead time
    14 to 20 wks

  • Pipe spools & process skids

    Capacity
    DN15 to DN300
    Pressure
    To 16 barg
    Material
    SS304, SS316L
    Finish
    Orbital TIG, boroscoped
    Lead time
    6 to 10 wks

  • Heat-transfer add-ons

    Capacity
    Dimple, half-pipe, coil
    Pressure
    Jacket to 10 barg
    Material
    SS316L, carbon steel jacket
    Finish
    Insulated & clad option
    Lead time
    With vessel

Lead times run from approved drawing to ex-works, based on our 2025 order book.

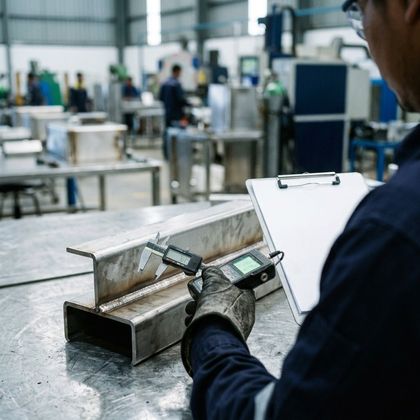

Close-up of a QA inspector's gloved hands measuring a stainless steel weld seam with a digital caliper
Every seam measured and logged before sign-off.

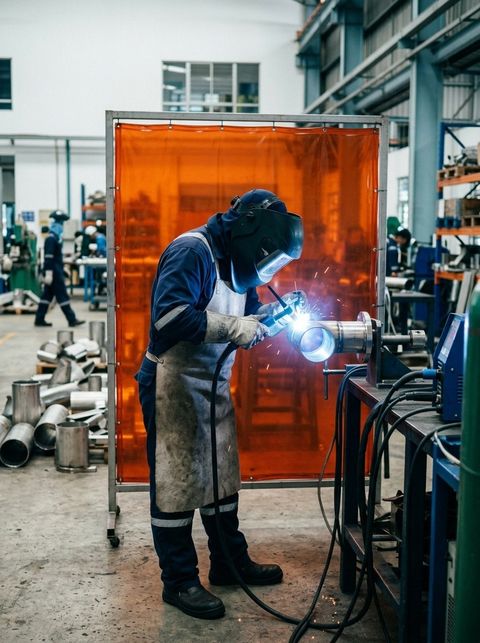

Welder in full protective gear performing orbital TIG welding on stainless steel pipe inside a screened cell

The machines behind the table

Everything except head pressing happens under one roof in Rawang. That is why a revision on Tuesday can be on the rolling machine by Thursday, and why you can walk the floor on any weekday without booking a special tour.

Plate rolling
Up to 3,000 mm wide, 16 mm thick in stainless
Dished heads
Torispherical and ellipsoidal, Ø 600 to 3,600 mm, pressed by a partner mill, trimmed in-house
Cutting
6 kW fibre laser, 3 × 1.5 m bed, 25 mm stainless
Welding
GTAW, GMAW and orbital TIG, 18 coded welders
Finishing
Mechanical polish to Ra 0.4 µm, electropolish up to 3 m³
Testing
Hydro, pneumatic, helium leak, PMI, ferrite and boroscope

Steel moves one way through our shop. So do your drawings.

Our Rawang plant is laid out as a single loop, from raw plate to the loading bay. Nothing doubles back, stainless never shares a bay with carbon steel, and every station has a named supervisor you can ask for on a visit.

Floor plan of the Tangkira plant in Rawang: seven bays arranged in a loop from material store to dispatch20 t crane railQA laboutin1234567

Swipe the plan sideways to see the full shop.

  1. 1

    Material store & cutting

    Plate arrives with mill certificates, gets PMI-checked, then goes to the 6 kW fibre laser. Offcuts are sorted by grade for recycling.

  2. 2

    Rolling & forming

    Four-roll plate bender for shells up to 3,000 mm wide. Heads come in pressed and are trimmed and bevelled here.

  3. 3

    Welding cells

    Six screened cells, one vessel per cell, carbon-steel-free zone. Orbital TIG for pipework runs in cell 6.

  4. 4

    Polishing & finishing

    Internal polish to the Ra you specified, measured with a profilometer and logged per zone.

  5. 5

    Pickling & passivation

    Bunded, ventilated bay with a fume scrubber. Rinse water goes to our treatment tank, not the drain.

  6. 6

    Hydro test pit

    Sunken pit for vessels up to 7 m tall. Calibrated gauges, chart recorder, witness gallery for your inspector.

  7. 7

    Dispatch & QA lab

    Final inspection, bagging and dossier sign-off, then onto the truck under a 20 t overhead crane.

covered shop floor
4,200 m²
overhead cranes, 9 m hook height
2 × 20 t
rooftop solar
612 kWp
people, 18 of them coded welders
64
Book a factory walk-through

Weekdays 9 am to 4 pm. Safety boots provided.

Three recent jobs, measured the way plant managers measure them.

Downtime, lead time, and what the auditor said. Ask us for the reference contact on any of these and we will set up the call.

UHT plant, Nilai

Kelip Dairies

6 × 12 m³ jacketed buffer tanks, SS316L, with CIP spray balls and load cells

The old tanks had to come out and the new ones go in during a 9-day Hari Raya shutdown. We pre-assembled pipe spools in Rawang, trial-fitted them against a laser scan of the site, and worked two shifts.

shutdown, finished with 20 hours spare
9 days
CIP cycle per tank
38 → 22 min
punch items at FAT
0
“They showed up with the spools already numbered to our P&ID. My team only had to bolt them in.”
Farhana Iskandar, Plant engineer (demo), Kelip Dairies

Fatty-acid refinery, Pasir Gudang

Sawira Oleo

2 × 25 m³ jacketed reactors, 6 barg shell, 10 barg half-pipe steam jacket

The European quote came in at 30 weeks and in euros. We built both reactors to the same ASME design basis, with the same third-party inspector, in 14 weeks and at a fixed ringgit price.

drawing to delivery, versus 30 quoted
14 wks
saved against the import quote
RM 1.9m
RT on longitudinal seams, passed first time
100%
“Same inspector, same code, same result. Just half the wait and no currency surprise.”
Lim Wei Keat, Projects manager (demo), Sawira Oleo

Nutraceutical plant, Enstek

Mekar Bio

Purified water skid + 3 × 3 m³ compounding vessels, electropolished

A GMP audit was booked before the vessels were even ordered. We built the dossier alongside the steel, with boroscope footage for every orbital weld and roughness readings per zone.

average internal finish, spec 0.4
Ra 0.32 µm
order to installed
11 wks
client audit passed, zero findings on equipment
1st time
“The auditor asked for weld records and we handed over one binder. That was the end of the conversation.”
Dr. Suresh Pillai, QA head (demo), Mekar Bio

Certified, audited, and happy to show you the paperwork.

Your vendor-registration team will ask for these. Every certificate below is in the company profile pack, and we send the current copy with every quotation so nobody has to chase it.

  • Quality management

    ISO 9001:2015

    QMS-DEMO-0419

    Valid to Mar 2028

  • Environmental management

    ISO 14001:2015

    EMS-DEMO-0233

    Valid to Mar 2028

  • Safety & health

    ISO 45001:2018

    OHS-DEMO-0107

    Valid to Jun 2027

  • Contractor grade

    Mechanical category, unlimited value

    CIDB-DEMO-0000000

    Renewed Jan 2026

  • Pressure vessel fabricator

    Approved for unfired pressure vessels

    JKKP-DEMO-0588

    Valid to Dec 2027

  • Welder qualification

    Welders qualified to ASME IX, 42 WPS/PQR on file

    WPS register TPS-QA-011

    Audited yearly

Tangkira Process Steel is a fictional company. Certificate and registration numbers on this page are placeholders, not real records.

Seven checks between your drawing and your plant.

Our inspection and test plan is agreed with you before work starts. At a hold point, work stops until you or your inspector sign off. At a witness point, we give you 48 hours' notice so you can attend.

  • Hold point: we wait for your sign-off
  • Witness: you may attend
  • Review: record in the dossier
  1. 1

    Material check

    Review

    Every plate and pipe matched to its EN 10204 3.1 mill certificate. PMI gun confirms the grade before cutting.

  2. 2

    Weld procedure

    Review

    Joint design matched to a qualified WPS. Only welders coded for that procedure touch your vessel.

  3. 3

    Fit-up & dimensions

    Hold point

    Nozzle orientation, heights and levelness checked against the approved drawing before final welding.

  4. 4

    NDT

    Witness

    Radiography or dye-penetrant to the extent your code calls for, 10% to 100%, by a third-party Level II.

  5. 5

    Hydro test

    Hold point

    Held at 1.3 × design pressure for at least 60 minutes with a chart recorder. Your inspector can sign the chart.

  6. 6

    Pickle & passivate

    Witness

    Weld tint removed, surface passivated, then a ferroxyl test proves no free iron is left behind.

  7. 7

    FAT & dossier

    Hold point

    Factory acceptance test with water, agitator run-in, and a bound QA dossier handed over with the vessel.

Built in Rawang or shipped from Europe?

Imported vessels are often good vessels. The question is what you give up to wait for them. Here is the honest side-by-side we walk procurement teams through.

Where imports win: long runs of identical small tanks, 200 or more a year. A volume line abroad will beat us on unit price, and we will tell you so.

  • Lead time, 10 m³ jacketed vessel

    Tangkira: 12 to 16 weeks

    Import: 26 to 36 weeks plus shipping

  • Price currency

    Tangkira: Fixed in ringgit at order

    Import: USD or EUR, exposed to the rate

  • Seeing your vessel mid-build

    Tangkira: Any weekday, 40 minutes from KL

    Import: One FAT trip, flights and hotel on you

  • Changes after FAT

    Tangkira: Done in Rawang in days

    Import: Shipped back, or a site welder at site rates

  • Breakdown response

    Tangkira: Engineer on site in 24 hours in Peninsular Malaysia

    Import: Email ticket, parts by air freight

  • Design code & inspection

    Tangkira: ASME VIII-1, your chosen third-party inspector

    Import: Same code and inspector possible

Numbers for your supplier ESG questionnaire, ready before you ask.

Big buyers now score their suppliers on carbon, water and waste. We measure ours every month and publish a one-page sheet each year, so your sustainability team can fill in the vendor form in minutes.

See the 2025 ESG sheet
Share of shop electricity from our own rooftop solar

612 kWp array, commissioned in two phases, 2023 and 2024

20220%202318%202436%202541%0%50%
of stainless offcuts and swarf go back to a melt shop, sorted by grade
96%
of pickling rinse water is treated and reused on site
78%
argon per metre of weld since 2022, from pulsed TIG and gas savers
−18%
wastewater discharge notices from the local authority since we opened
0

Datasheets for your spec file and your vendor pack.

No email wall on the technical sheets. Take what you need for your tender or your design review, and send them to your team as they are.

Send us your spec. Get a priced drawing back in 5 working days.

A P&ID, a datasheet, a hand sketch or a photo of the tank you want to replace are all fine. The more you send, the tighter the price, but a rough brief still gets you a budget number.

  1. 1

    Within 1 working day

    A sales engineer for your industry calls or emails to confirm scope and any missing data.

  2. 2

    Within 5 working days

    Budget quotation with a general arrangement sketch, lead time and payment terms.

  3. 3

    After your go-ahead

    Detailed drawings for approval, then the inspection and test plan. Steel is cut only after both are signed.

Prefer to talk first? Call +60 12-000 0000 or email [email protected].

Request for quotation

Fields marked * are required.

PDF, DWG, DXF, STEP, Excel or photos. Up to 5 files, 25 MB total. We sign your NDA on request.

Questions buyers ask before the first call

Something missing? Put it in the RFQ form and an engineer will answer it with your quote.

What is your minimum order?

One vessel. Most of our work is one to six vessels per project. For a single small tank under 1 m³ we may point you to a standard catalogue tank, because a custom build will cost more than it is worth.

Can you build to our own design, or do you design it for us?

Both. About half our orders arrive as a client drawing that we check and detail for fabrication. The other half start from a process datasheet, and our engineers do the mechanical design and calculations to ASME VIII Div. 1 for your approval.

Do you install on site?

Yes, across Peninsular Malaysia, with our own riggers and pipe fitters. For Sabah, Sarawak, Singapore and Indonesia we deliver and supervise, working with your local installer.

Which third-party inspectors do you work with?

Any recognised inspection body your project names. We schedule their hold and witness points in the inspection and test plan so they are never waiting on us.

What are your payment terms?

Typically 30% on order, 40% on hydro test, 25% on delivery and 5% on site acceptance. Prices are fixed in ringgit. Government-linked and listed companies can ask about their standard vendor terms.

What warranty do we get?

24 months on workmanship and materials from delivery, and 12 months on bought-in parts such as motors and valves, backed by the maker. Breakdown calls in Peninsular Malaysia get an engineer on site within 24 hours.

Do you repair or modify tanks you did not build?

Yes, if we can verify the material. We add nozzles, jackets and agitators, re-passivate, and re-certify after repair. We will ask for the original data book if you have it.

Talk to the people who will build it.

No call centre. Your first call goes to an engineer who has built vessels for your industry, and stays your contact until hand-over.

  • Nurul Aina Rosli

    Sales engineer, food, dairy & pharma

  • Rajesh Kumar

    Sales engineer, oleochemicals & chemicals

  • Tan Chee Meng

    Service & site repairs

People named on this page are fictional.

Kuala LumpurTangkira plantRawang, Selangor~40 min

Plant & office

Tangkira Process Steel Sdn Bhd (fictional)
Lot 00 (demo address), 48000 Rawang, Selangor

Mon to Fri, 8 am to 5.30 pm
Sat, 8 am to 1 pm (site service only)

Reach us

WhatsApp salesBook a visit

Demo only

This button is part of a demo template. Nothing was sent, booked or charged, and there is no real business behind this page.

Want a page like this for your business?

QR code: Darus Ishak, Ruji Labs contact cardScan or tap to get the contact card of Darus Ishak, Ruji Labs.Open contact card ↗
